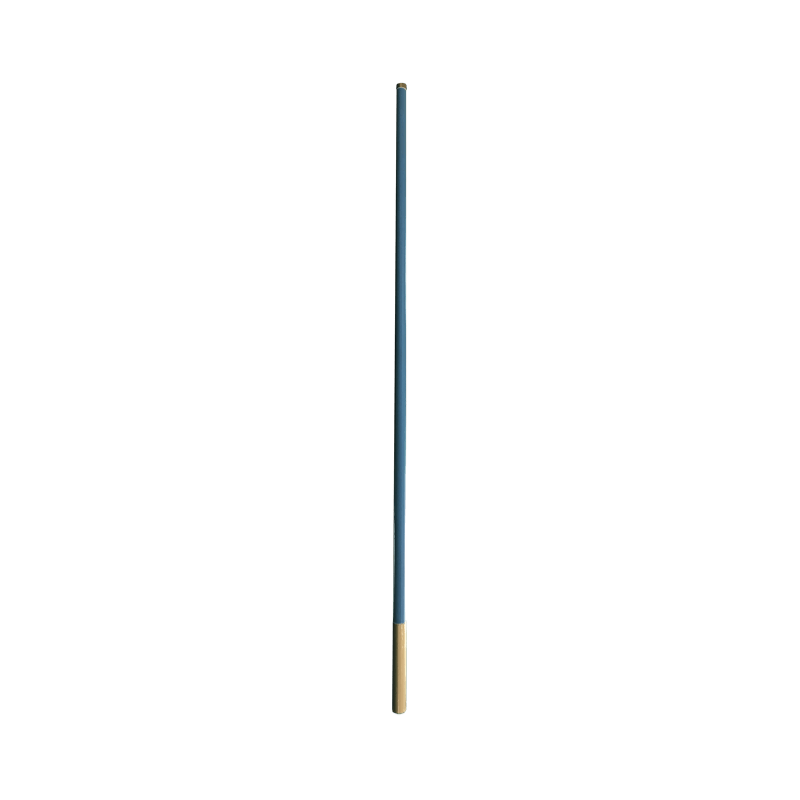

LT-ANT340-360-DM9
UHF TETRA High-Gain Base Station Antenna
The Lamatel LT-ANT340-360-DM9 is a high-performance UHF omni-directional antenna designed to deliver exceptional signal stability and reliability across the 340–360 MHz frequency range. Built with precision-engineered materials and a durable fiberglass radome, this antenna ensures superior operation in demanding environments. Ideal for base station installations, the LT-ANT340-360-DM9 combines high gain performance with rugged weather resistance, making it a trusted choice for communication networks that demand consistent connectivity even in extreme outdoor conditions.
Login to view prices
Additional information
| Frequency Range | 340–360 MHz |
|---|---|
| Antenna Gain | 9 dBi |
| Power Rating | 500 W |
| Impedance | 50 Ω |
| VSWR | ≤ 1.5 |
| Pattern | Omnidirectional |
| Vertical Beamwidth | 16° |
| Termination | 7/16 DIN-Female |
| Dimensions | Φ70 × (4000 ± 30) mm (L × Base Ø) |
| Installed Weight (Antenna + Clamps) | 6.5 ± 0.3 kg |
| Color | Blue |
| Wind Rating | 60 m/s |
| Maximum Exposed Area | 2.02 ft² |
| Lateral Thrust @100 mph | 8.4 kgf |
| PIM | ≤ -150 dBc (@2×43 dBm) |
