LT-ANT400-425-9

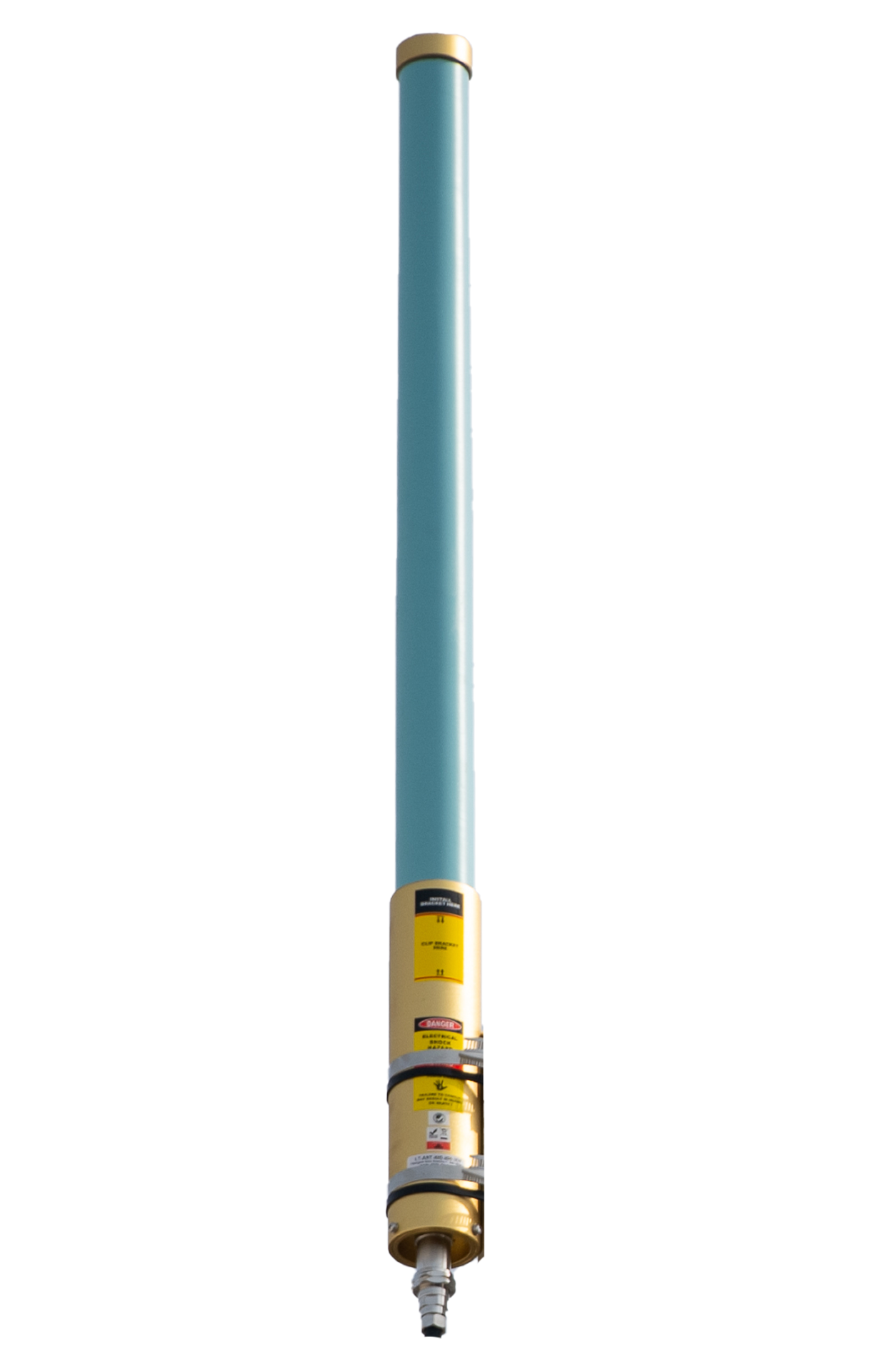

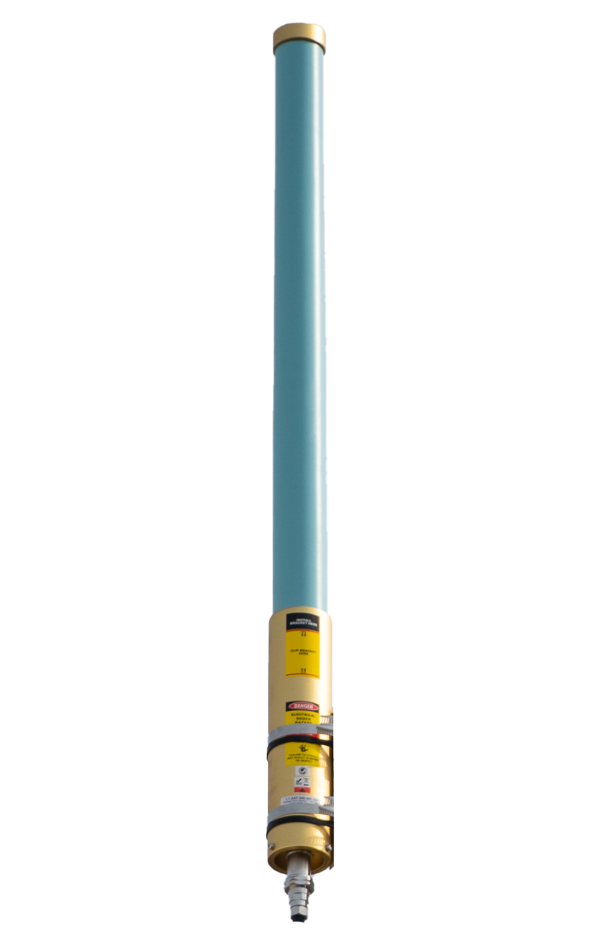

UHF High-Gain Fiberglass Base Station Antenna (400?425 MHz, 9 dBi)
The LT-ANT400-425-9 is a high-gain UHF base station antenna optimized for the 400?425 MHz band. Delivering 9 dBi omnidirectional gain and supporting up to 500 W input power, it is engineered to provide reliable wide-area coverage for professional and mission-critical communication systems.
The LT-ANT400-425-9 is a high-gain UHF base station antenna optimized for the 400?425 MHz band. Delivering 9 dBi omnidirectional gain and supporting up to 500 W input power, it is engineered to provide reliable wide-area coverage for professional and mission-critical communication systems.
Additional information
| Weight | 4 kg |
|---|---|
| Dimensions | 325 × 5 cm |
| Frequency Range | 400?425 MHz |
| Bandwidth | 25 MHz |
| Gain | 9?1 dBi |
| Pattern Shape | Omnidirectional |
| Vertical Beamwidth | 13? |
| Horizontal Beamwidth | 360? |
| Intermodulation (IM3) | PIP: 600 W |
| VSWR | ?1.65 |
| Impedance | 50 ? |
| Polarization | Vertical |
| Max Power | 500 W |
| Lightning Protection | DC Grounded |
| Ingress Protection | IP24 (IP65 blocking leak test) |
| Connector | N Female |
| Length | 3205 ±20 mm |
| Diameter | 70 mm |
| Weight | 5.5 ±0.2 kg (without bracket) |
| Radome | Blue Fiberglass |
| Pole Diameter | Ø80-95 mm |
| Rated Wind Velocity | 60 m/s |
