LT-ANTL134-184-4.5
VHF Cut-Tuned Base Station Antenna (134?184 MHz, 4.5 dBd)

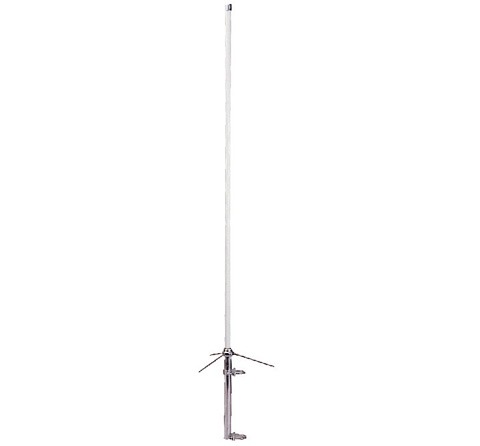

The LT-ANTL134-184-4.5 is a VHF cut-tuned base station antenna designed for the 134?184 MHz band. Built with a 5/8? design and delivering 4.5 dBd gain, it ensures efficient wide-area coverage with 200 W power handling. Weighing only 1.0 kg and featuring a 1.75 m fiberglass structure with ground radials, it is ideal for installations requiring easy handling, flexibility, and reliable outdoor performance.
The LT-ANTL134-184-4.5 is a VHF cut-tuned base station antenna designed for the 134?184 MHz band. Built with a 5/8? design and delivering 4.5 dBd gain, it ensures efficient wide-area coverage with 200 W power handling. Weighing only 1.0 kg and featuring a 1.75 m fiberglass structure with ground radials, it is ideal for installations requiring easy handling, flexibility, and reliable outdoor performance.
Additional information
| Weight | 1 kg |
|---|---|
| Frequency Range | 134?184 MHz (cut-tuned) |
| Gain | 4.5 dBd |
| VSWR | ? 1.5 |
| Impedance | 50 ? |
| Polarization | Vertical |
| Max Power | 200 W |
| Connector | SO-239 |
| Radiation Pattern | Omnidirectional (5/8? design |
| Wind Rating | 130 mph (55 m/s) |
| Mounting | Support pipe, U-Bolts, and ground radials (supplied) |
