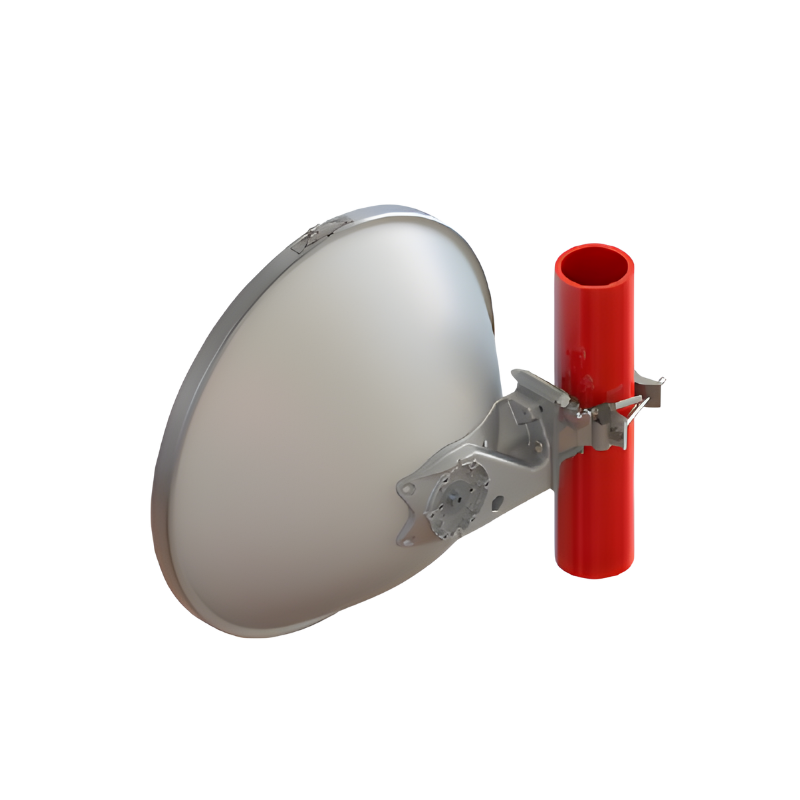

LT-ANTSP78-1P-2FT
High-Performance Low-Profile Antenna ? Single Polarized (2 ft)
High-performance low-profile antenna engineered to deliver reliable signal quality in space-constrained installations. With single polarization and a compact 2-foot profile, it is ideal for professional fixed or mobile communication systems requiring durability, reduced interference, and consistent RF performance in demanding environments.
High-performance low-profile antenna engineered to deliver reliable signal quality in space-constrained installations. With single polarization and a compact 2-foot profile, it is ideal for professional fixed or mobile communication systems requiring durability, reduced interference, and consistent RF performance in demanding environments.
Additional information
| Product Type | Microwave antenna |
|---|---|
| General Specifications | Polarization Single Side Struts, Included 0 Side Struts, Optional 0 |
| Dimensions | Diameter, nominal 0 . 6 m, 2 ft |
| Electrical Specifications | Operating Frequency Band 7 . 1 0 0 ? 8 . 5 00 GHz Gain, Low Band 2 9 . 6 dBi Gain, Mid Band 3 1.1 dBi Gain, Top Band 3 2 . 2 dBi Boresite Cross Polarization Discrimination (XPD) 32 dB Front-to-Back Ratio 57 dB Beamwidth, Horizontal 4 . 7 ? Beamwidth, Vertical 4 . 7 ? Return Loss 17.7 dB VSWR 1.3 Radiation Pattern Envelope Reference (RPE) 7199C Electrical Compliance Brazil Anatel Class 2, ETSI 302 217 Class 3 |
| Mechanical Specifications | Compatible Mounting Pipe Diameter 50 mm?120 mm, 2.0 in?4.7 in Fine Azimuth Adjustment Range ?15? Fine Eleva??on Adjustment Range ?15? Wind Speed, operational 201 km/h, 124.896 mph Wind Speed, survival 250 km/h, 155.343 mph |
