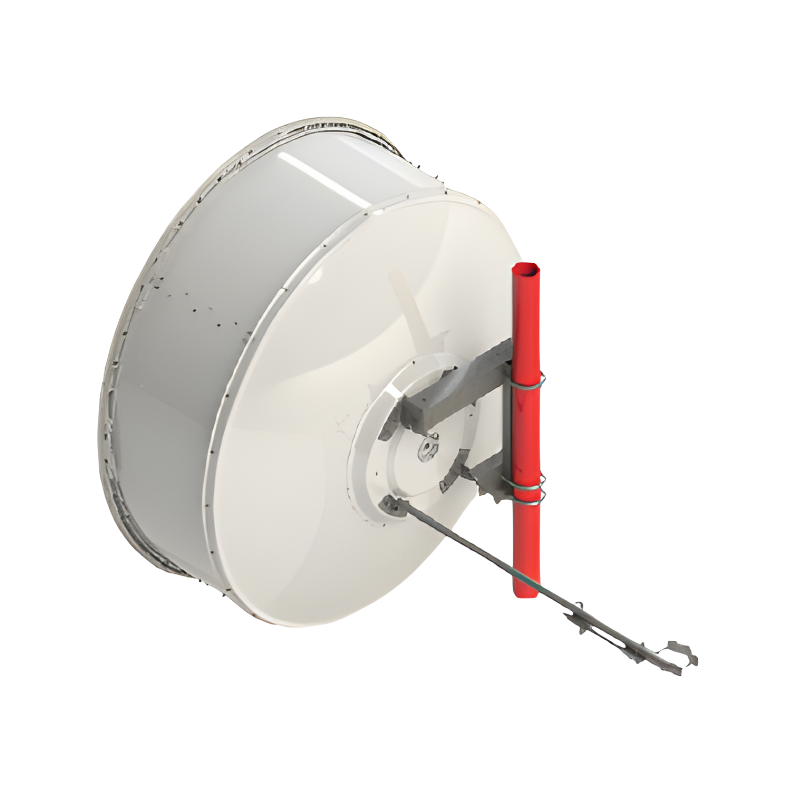

LT-ANTSP78-1P-6FT
High-Performance Low-Profile Antenna ? Single Polarized (6 ft)
High-performance low-profile antenna designed for demanding communication environments where durability and signal quality are critical. Featuring single polarization and a 6-foot profile, it delivers strong connectivity, stable performance, and reduced interference for professional fixed and mobile communication systems.
High-performance low-profile antenna designed for demanding communication environments where durability and signal quality are critical. Featuring single polarization and a 6-foot profile, it delivers strong connectivity, stable performance, and reduced interference for professional fixed and mobile communication systems.
Additional information
| Product Type | Microwave antenna |
|---|---|
| General Specifications | Polarization Single Side Struts, Included 1 Side Struts, Optional 1 inboard |
| Dimensions | Diameter, nominal 1.8 m, 6 ft |
| Electrical Specifications | Operating Frequency Band 7.125 ? 8.500 GHz Gain, Low Band 40.1 dBi Gain, Mid Band 40.8 dBi Gain, Top Band 41.5 dBi Boresite Cross Polarization Discrimination (XPD) 32 dB Front-to-Back Ratio 67 dB Beamwidth, Horizontal 1.5 ? Beamwidth, Vertical 1.5 ? Return Loss 17.7 dB VSWR 1.3 Radiation Pattern Envelope Reference (RPE) 7081D Electrical Compliance Brazil Anatel Class 3, Canada SRSP 307.1, Canada SRSP 307.7 Part B, ETSI 302 217 Class 3 |
| Mechanical Specifications | Compatible Mounting Pipe Diameter 115 mm?120 mm, 4.5 in?4.7 in Fine Azimuth Adjustment Range ?15? Fine Elevation Adjustment Range ?5? Wind Speed, operational 201 km/h 124.896 mph Wind Speed, survival 250 km/h 155.343 mph |
