LT-BNCF-LLC400

LT-BNCF-LLC400

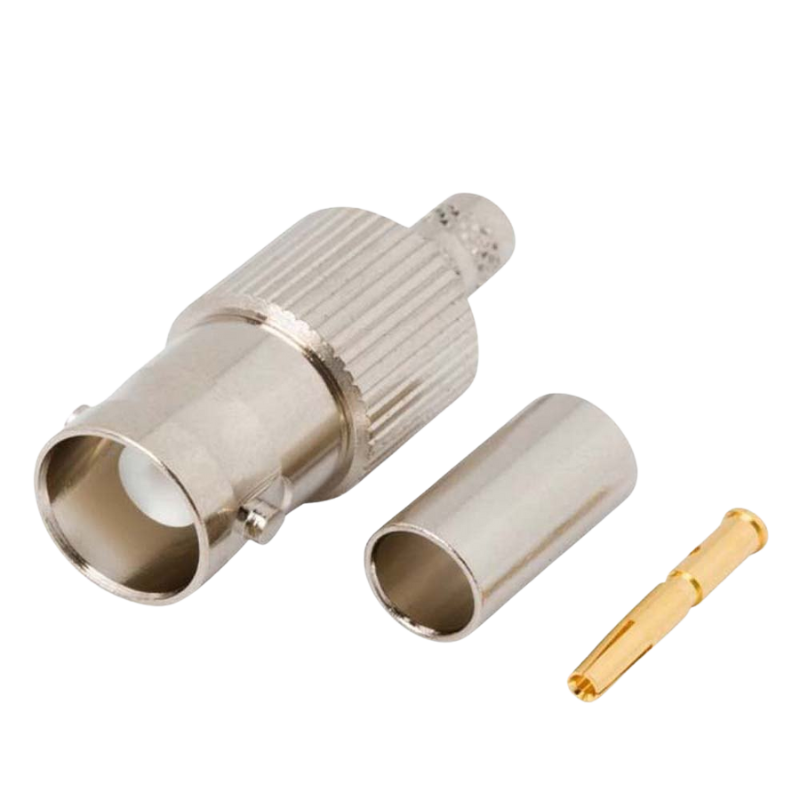

BNC-FEMALE FOR LLC400 CABLE W/ SHRINK

LT-BNCF-LLC400 is a precision BNC Female connector designed for use with LLC400 coaxial cable. Built for secure and stable connections, it ensures efficient signal transmission with low loss, making it suitable for professional RF and communication applications. The LT-BNCF-LLC400 provides a reliable termination solution for LLC400 cables, offering consistent performance in RF systems.

Login to view prices

Additional information

Material and Plating

Center Contact
Tin-bronze / Gold Plating

Outer Contact & Body
Brass / Nickel Plating

Dielectric
PTFE

Gasket
Silicon Rubber
Electrical Specifications

Characteristics Impedance
50 Ohm

Frequency Range
DC~4.0GHz

Insulation Resistance
≥5000MΩ

Center Contact Resistance
≤1.5 mΩ

Outer Contact Resistance
≤1.0 mΩ

Dielectric Withstanding Voltage
1500V rms (AC)

Working Voltage
500V rms

Insertion Loss
≤0.10dB@3GHz

VSWR
≤1.20@DC~1.0GHz
≤1.30@1.0~2.0GHz
Environmental & Mechanical Specifications

Mating Durability
≥500 cycles

Suitable Cables
LLC400

Mechanical Shock Test Method
MIL-STD-202, Method 213, Test Condition D

Thermal Shock Test Method
MIL-STD-202F, Method 107G, Test Condition A

Vibration Test Method
MIL-STD-202, Meth. 204, Cond. A

Temperature Range
-65°C to +165°C

RoHS
Compliant

Datasheet

Download
