LT-D10-HX-S

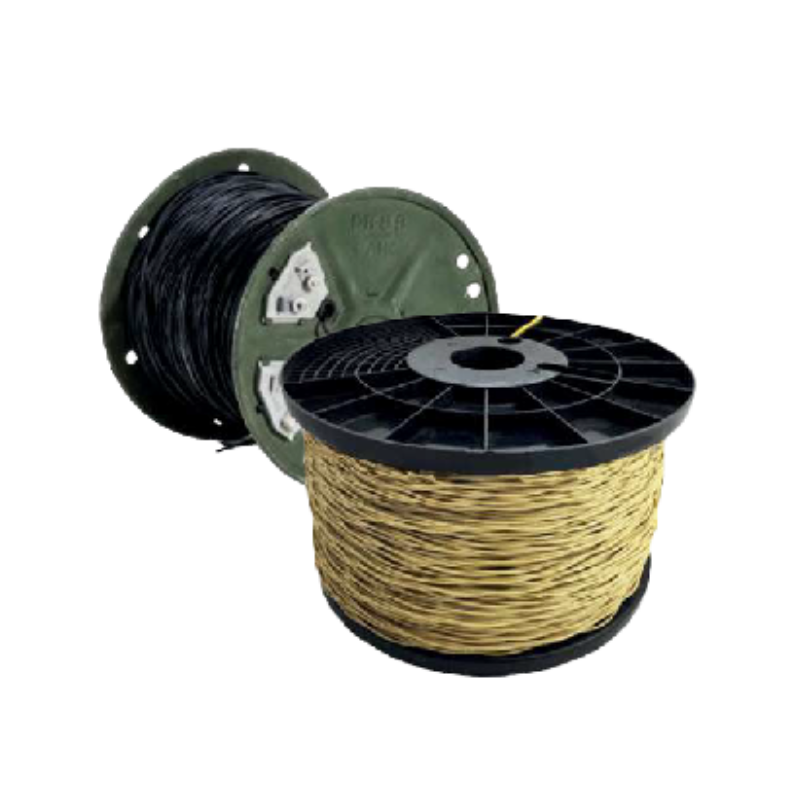

D10 Field Telephone Cable

The LT-D10-HX-S is a rugged and flexible field telephone cable designed to withstand harsh environmental conditions and demanding operational use. Functionally equivalent to MIL-C-13294, it ensures reliable communication over long distances between field telephones, line equipment, and exchanges. Engineered for durability and performance, the LT-D10-HX-S combines tinned copper conductors and reinforcing steel wires within a polyethylene insulation and nylon protective jacket, offering exceptional tensile strength, resistance to abrasion, and stable transmission even in extreme climates.

Login to view prices

Additional information

Specifications

Voltage Rating
600V (2000Hz)

Operating Temperature
−40°C to +80°C

Conductor DC Resistance (20°C)
≤151Ω/km

Insulation Resistance (20°C)
≥3500MΩ·km

Dielectric Strength
AC 3kV / 5min, no breakdown

Tensile Strength of Conductor
≥390N

Typical Attenuation
400Hz: 1.2dB/km / 3300Hz: 2.3dB/km

Compliance
Operationally equivalent to MIL-C-13294

NATO Stock Number
6145-99-648-0813

Color
Sand Color

Datasheet

Download

Test Report

Download
