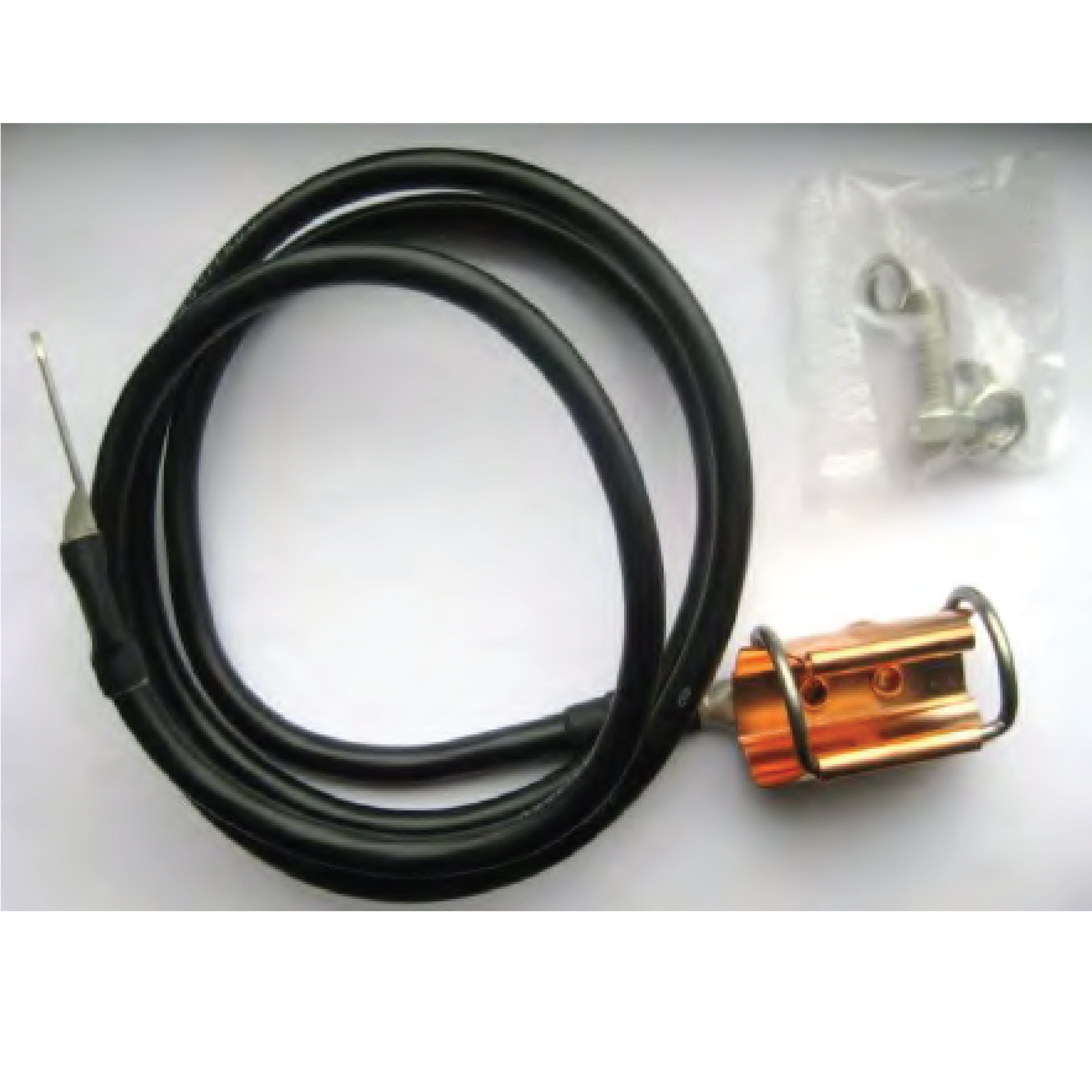

LT-GRND-11/4-Kit
Spring Type Outdoor Grounding Kit
The LT-GRND-11/4-Kit is a professional-grade spring-type grounding kit designed for outdoor installation of 1 1/4″ flexible RF coaxial cables. It ensures low-resistance grounding, excellent
mechanical reliability, and long-term protection against lightning surges, static discharge, and environmental exposure. This grounding kit forms a critical part of a telecommunication system’s lightning protection and grounding network. It safely diverts high transient currents from the feeder cables to the tower grounding system, preventing damage to RF equipment and minimizing downtime. Built with T2 red copper for superior conductivity and 304-grade stainless steel (ASTM standard) for durability, the LT-GRND-11/4-Kit guarantees stable performance
even under harsh weather conditions. The assembly is pre-measured, easy to install, and supplied with all required accessories for immediate field deployment.
Login to view prices
Additional information
| Product Type | Spring-Type Outdoor Grounding Kit |
|---|---|
| Ground Wire Length | 1.0m |
| Cable Section Area | 16mm² |
| Stretching Resistance | > 500N |
| Contact Material | T2 Red Copper + 304 Stainless Steel (ASTMStandard) |
| Voltage Resistance | 35 kV |
| Power Frequency Withstand Voltage | 80 kA |
| Insulation Resistance | 10 GΩ |
| Operating Temperature Range | -40°C to +70°C |
| Installation Temperature Range | -40°C to +70°C |
| Compatible Cable Type | 1 1/4" Flexible RF Coaxial Cable |
| Waterproof Materials | Electrical Tape (50mm ×0.18mm × 10m) and Rubber Mastic Tape (63.5mm ×3.175mm × 600mm) |
| Protection Rating | IP68 |
| Mechanical Design | Spring Type, Non-Invasive |
| Compliance | ASTM304, IEC 60060, IEC 60068 Standards |
