LT-HS-V06

2-Wire Acoustic Tube Surveillance Kit

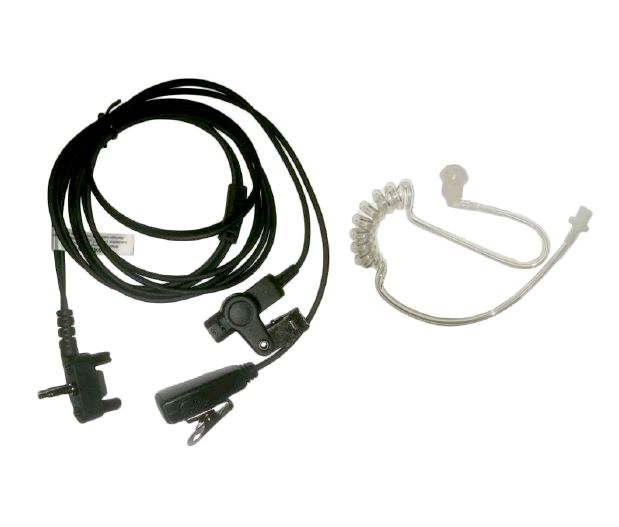

The Lamatel LT-V06 2-Wire Acoustic Tube Surveillance Kit is a discreet and professional-grade communication accessory designed for secure and clear audio transmission in demanding field environments. Built for law enforcement, security, and tactical operations, this surveillance kit offers reliable performance with maximum user comfort and minimal visibility. The LT-V06 is a 2-wire earpiece with a transparent acoustic tube and a separate push-to-talk (PTT) microphone, designed for covert and hands-free communication. Ideal for use in security, patrol, and law enforcement operations, it ensures clear audio, low profile wear, and dependable connection to two-way radios in high-noise or mission-critical environments.

Login to view prices

Additional information

Speaker Specifications

Type
Transducer Moving Coil Dynamic Speaker

Impedance
200 Ω ±15% @1KHZ

Sensitivity
103 dB ±10%/0.6mW on a coupler

Resonance Frequency
4 KHz ±20%

Frequency Respond
10 Hz ~ 4 KHz

Rated Input Power
0.6 mW

Maximum Input Power
400mW

Microphone Specifications

Sensitivity Range
-44 ± 2dB RL=2.2K Ω Vs=3.0V(DC) 1KHz 0dB=1V/Pa B16
Impedance Max
2.2KΩ 1KHz (RL=2.2KΩ)

Frequency
50-1600Hz

Current Consumption Max
0.5uA RL=2.2KΩ Vs=3.0V(DC)

Operation Voltage Range
1.0V-10V (DC)

Max Sound Pressure Level
115dB S.P.L THD<2% at 1K

Datasheet

Download
