LT-L2IND-6012P8C4F-HP

LT-L2IND-6012P8C4F-HP

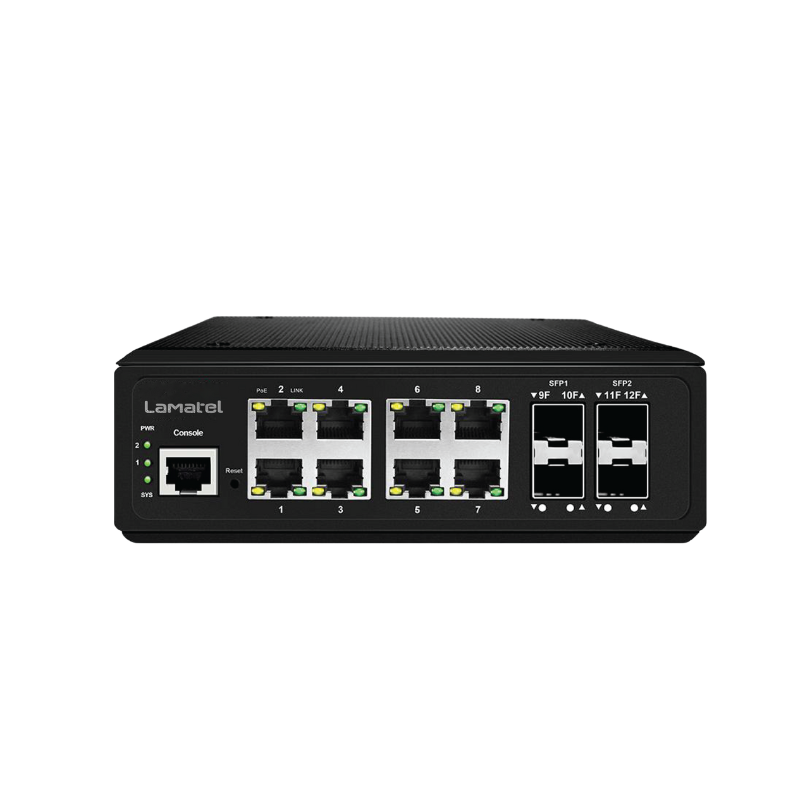

Industrial Managed Gigabit PoE Switch

The LT-L2IND-6012P8C4F-HP is an industrial-grade, managed Gigabit PoE switch designed for high-reliability communication in demanding environments. It integrates eight 10/100/1000BASE-T PoE ports and four Gigabit SFP uplink slots, delivering high-speed data transmission over copper or fiber. With its rugged IP40 metal enclosure, wide operating temperature range, and redundant DC power inputs, the switch ensures continuous operation in harsh industrial conditions.

It supports advanced Layer 2 + management functions, PoE scheduling, VLAN segmentation, and rapid ring recovery for resilient network topologies.

Login to view prices

Additional information

General Specifications

Model
LT-L2IND-6012P8C4F-HP

Copper Ports
8 × 10/100/1000BASE-T RJ45 auto-sensing ports

Fiber Ports
4 × 100/1000BASE-X SFP slots (dual mode)

Console Port
1 × RS-232-to-RJ45 serial port (115200 bps, 8-N-1)

Switch Architecture
Store-and-Forward
Technical Specifications

Switch Fabric
24 Gbps non-blocking

Throughput
17.856 Mpps @ 64 bytes

Address Table
8K MAC entries

Buffer Memory
4.1 Mb shared

Jumbo Frame
9216 bytes

SDRAM / Flash
1 Gb / 128 Mb
Functional Specifications

Flow Control
IEEE 802.3x (full-duplex); back pressure (half-duplex)

Reset
> 2 sec for factory default and reset

Power Input
Dual 48–57 VDC redundant inputs

PoE Standards
IEEE 802.3af / 802.3at (PSE)

PoE Budget
30 W per port (max), total dependent on PSU

PoE Power Type
52 V DC 300 mA (15.4 W, 802.3af); 52 V DC 600 mA (30 W, 802.3at)

LED Indicators
Power, System, PoE, Port Status (Gbps/Activity)

Management Interface
Web GUI, CLI (Telnet/SSH), SNMP v1/v2c/v3, RMON, LLDP

Layer 2 Features
VLAN (802.1Q/Port/Voice), STP/RSTP/MSTP, LACP, QoS, IGMP/MLD Snooping, ACLs, Port Mirroring

Layer 3 Features
IPv4/IPv6 Static Routing (Software Based)
Security & Management Specifications

Security
802.1X, RADIUS, TACACS+, Port Security, ARP Inspection, DoS Protection

PoE Management
Scheduling, PD Alive Check, Priority, Soft-Reboot Non-Stop
Environmental & Mechanical Specifications

Protection
6 kV Surge, ESD Level 4, EFT Level 4

Operating Temperature
–40 °C to +75 °C

Storage Temperature
–40 °C to +80 °C

Humidity
5% – 95% (non-condensing)

MTBF
≥ 50,000 hours

Enclosure
IP40 metal housing

Dimensions (W×D×H)
165 × 123 × 53.5 mm

Weight
1.0 kg

Installation
DIN-rail or wall mounting

Certification
RoHS / CE / FCC (under evaluation)

Datasheet

Download
