LT-OTR-4G2S

LT-OTR-4G2S

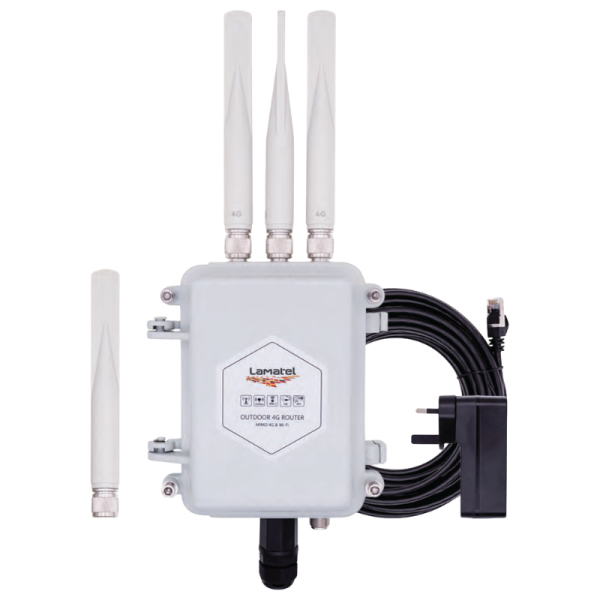

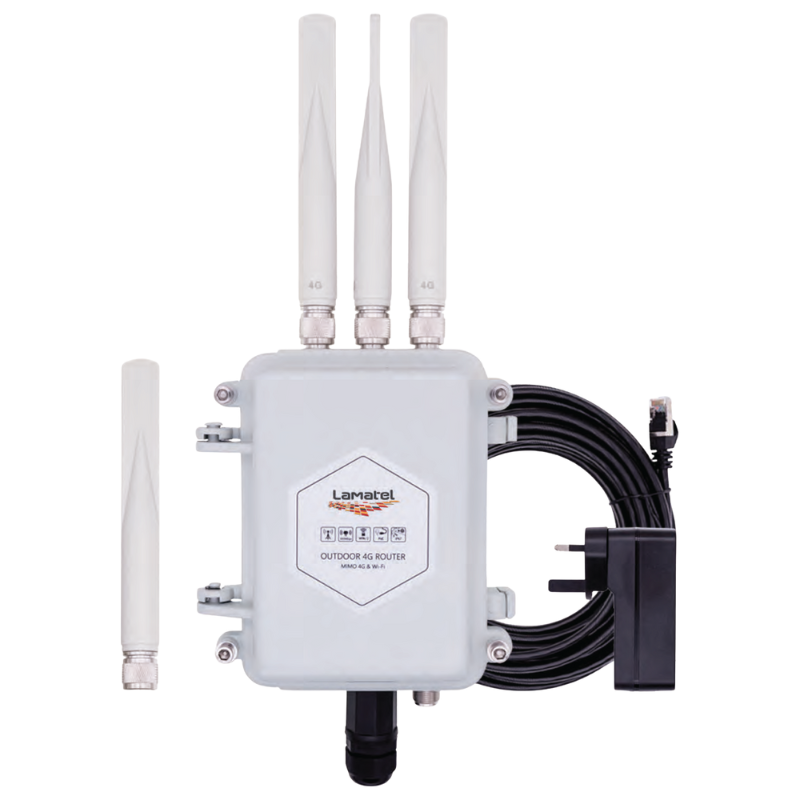

Outdoor 4G Router Dual-SIM

Integrated mobile modem, the LT-OTR-4G2S outdoor 4G router connect your phone, tablet, computer, camera, etc. to the internet via WiFi or LAN Ethernet. Comes with MIMO antennas, the router receive signals at a high sensitivity. Complying with the IEEE 802.11b/g/n standard, the outdoor router output Wi-Fi signals at max 27dBm power with transmission speeds of up to 300Mbps. You can control the Wi-Fi and LAN networks with firmware, such as SSID, DNS, encryption, firewall, port forwarding, Wi-Fi relay, and so on. IP67 hardened industrial-grade aluminum alloy case enclosure the router to withstand extreme weather conditions and rugged deployments.

Login to view prices

Additional information

MIMO 3G/4G Mobile Modem

􀂲 MIMO 4G – High sensitivity 􀂲 Replaceable mini PCIe modem 􀂲 Multiple standard modems available
MIMO Wi-Fi with Booster

􀂲 2.4GHz – IEEE 802.11b/g/n & 802.3u 􀂲 Wi-Fi transmission rate up to 300Mbps 􀂲 Support up to 57 concurrent users
PoE (power over Ethernet)

􀂲 PoE support IEEE 802.3af/at 􀂲 PoE injector included 􀂲 Support 50-100 meters LAN cable
Industrial-grade Rugged Design

􀂲 Designed for rugged deployments 􀂲 IP67 hardened aluminum alloy case 􀂲 Surge protection
Wi-Fi Router

Standards
IEEE 802.11 b/n/g & 802.3u

Transmission Rate
300Mbps by 2T2R MIMO

Frequency
2412~2484 MHz

Channel
1~13

Bandwidth
20/40MHz or Auto

Output Power
802.11n: 23±2dBm for OFDM mode
802.11g: 25±2dBm for OFDM mode
802.11b: 27±2dBm for CCK mode

Wi-Fi modes
11b / 11g / 11n only
11 b/g mixed
11 b/g/n mixed
Hardware Components

CPU
Qualcomm Atheros QCA9531

Frequency
650 MHz

Memory
128 MB

Flash
16 MB

4G Omni Antenna

Frequency
698~960 / 1710~2700MHz

Gain
3/4/3.5 dBi

VSWR
≤ 2.0

2.4G Wi-Fi Antenna

Frequency
2400~2500MHz

Gain
5 dBi

VSWR
≤ 2.0

2 x SIM card slot
Nano SIM card (12.3×8.8mm)

RJ45 port
1 x 10/100Mbps

Indicator
System / WiFi / SIM1 / SIM2

Working Temperature
-40 to 80°C

Storage Temperature
-50 to 90°C

Working Humidity
10%-90% RH

Installation
Pole mounted
Wi-Fi Specifications

Standards
IEEE 802.11 b/n/g & 802.3u

Transmission Rate
300Mbps by 2T2R MIMO

Frequency
2412~2484 MHz

Channel
1~13

Bandwidth
20/40MHz or Auto

Output Power
802.11n: 23±2dBm, 802.11g: 25±2dBm, 802.11b: 27±2dBm

Wi-Fi Modes
11b / 11g / 11n only, 11 b/g mixed, 11 b/g/n mixed

Firmware
SSID, DNS, Encryption, Firewall, Port forwarding, Wi-Fi relay
Concurrent Users
57 users

Bootloader
LTBoot

Firmware
OpenELT

Computer Support
Windows / Mac / Linux
POE Parameters

PoE Power
48Volt

PoE Standard
802.3af/at

Cable Length
50~100 meters

Wiring Ethernet
1,2,3,6 / DC+ 4,5 / DC- 7,8
Package Content

4G Router
1

Omni Antenna
4

LAN Cable
1 (10m)

PoE Adapter
1 (48V)

Mounting set & tool
1
Dimensions

Router
L232xW174xH70 mm / 986g

Package
L450xW300xH120mm / 2910g

Datasheet

Download
