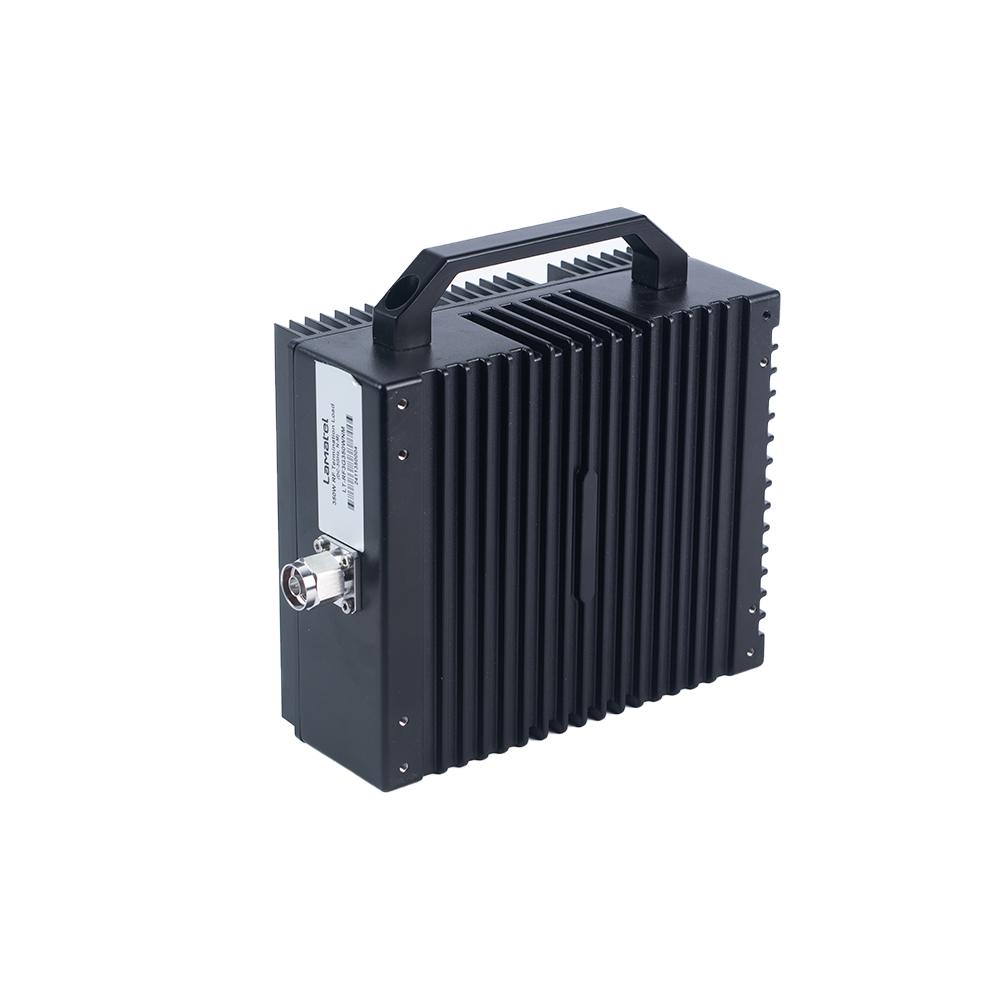

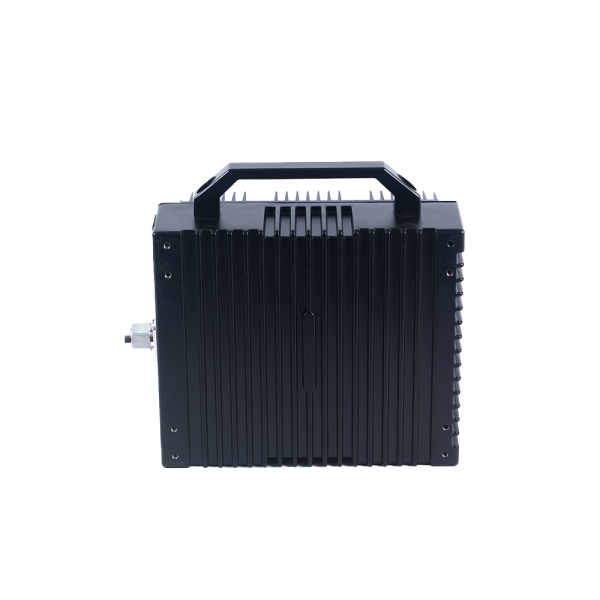

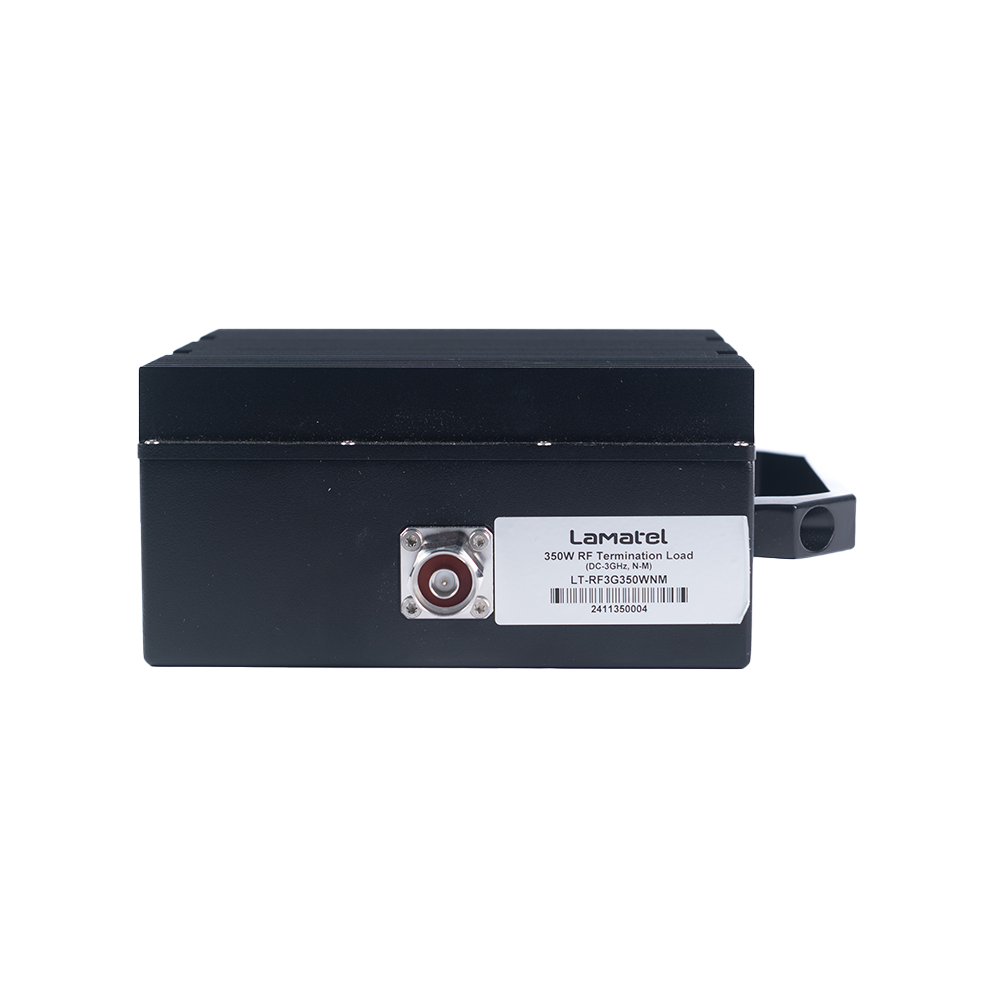

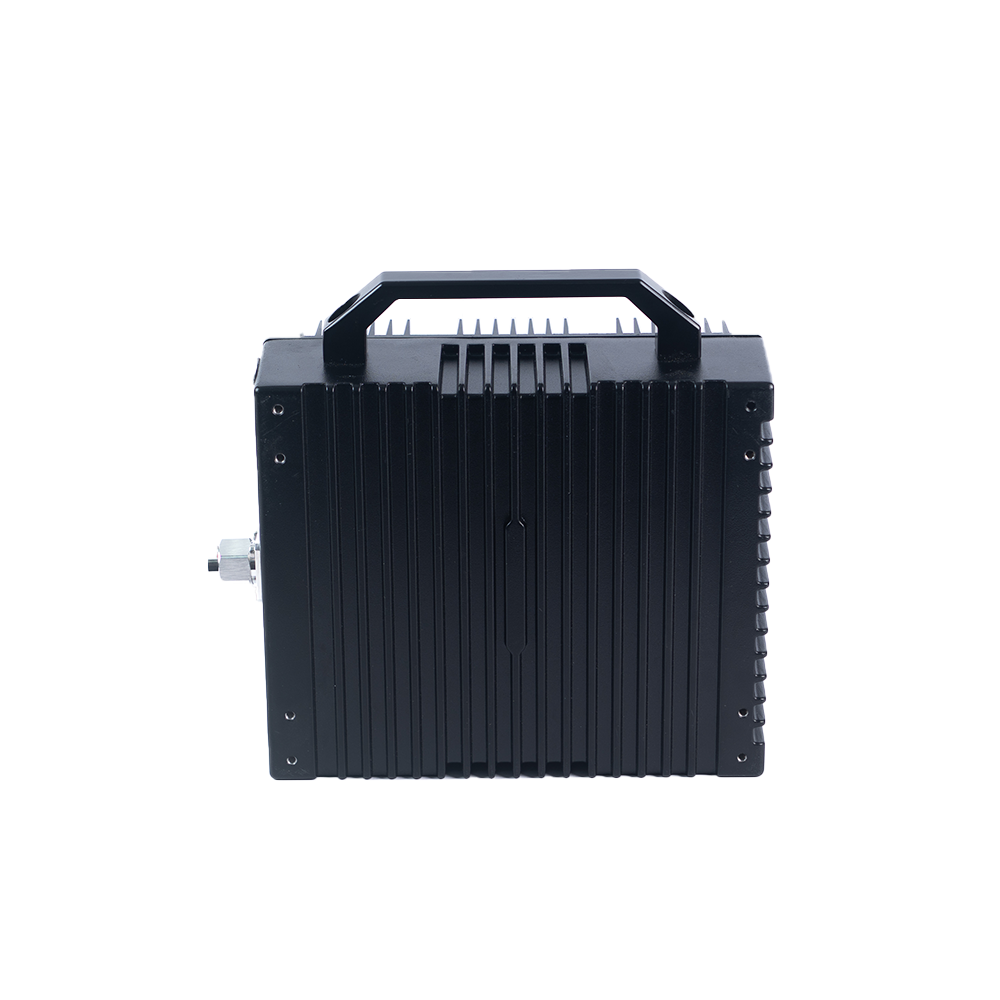

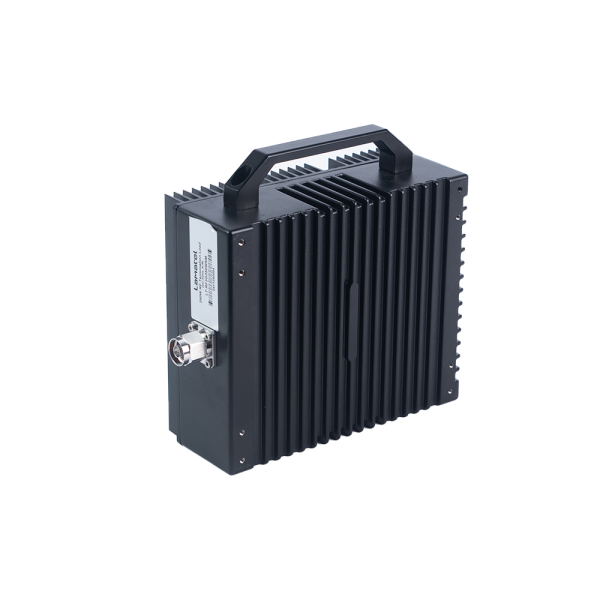

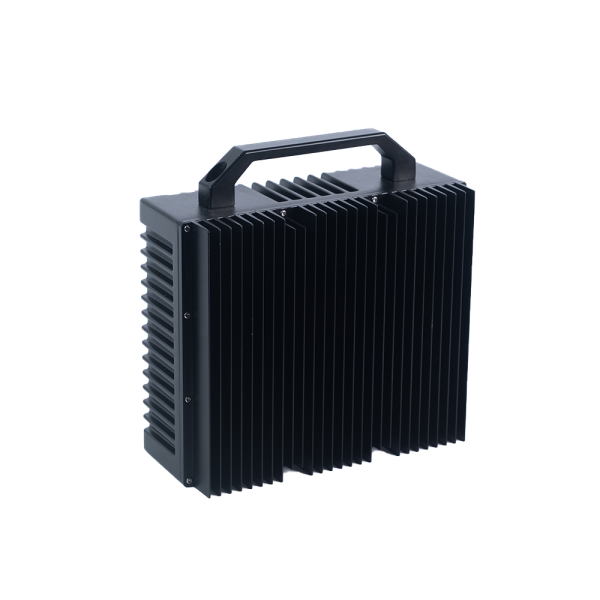

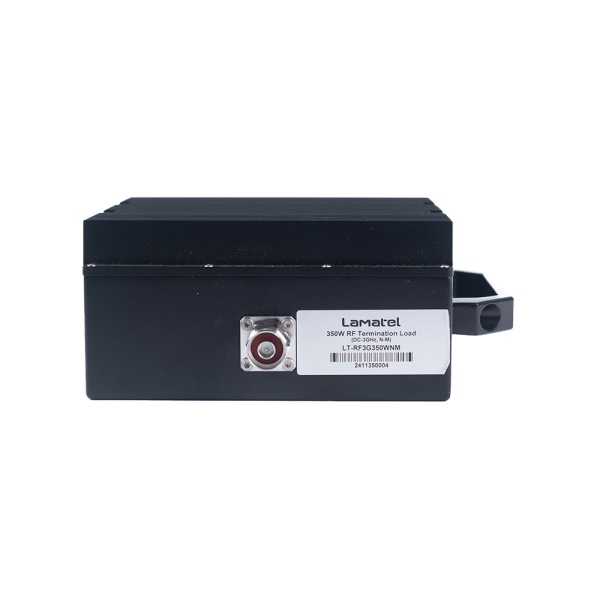

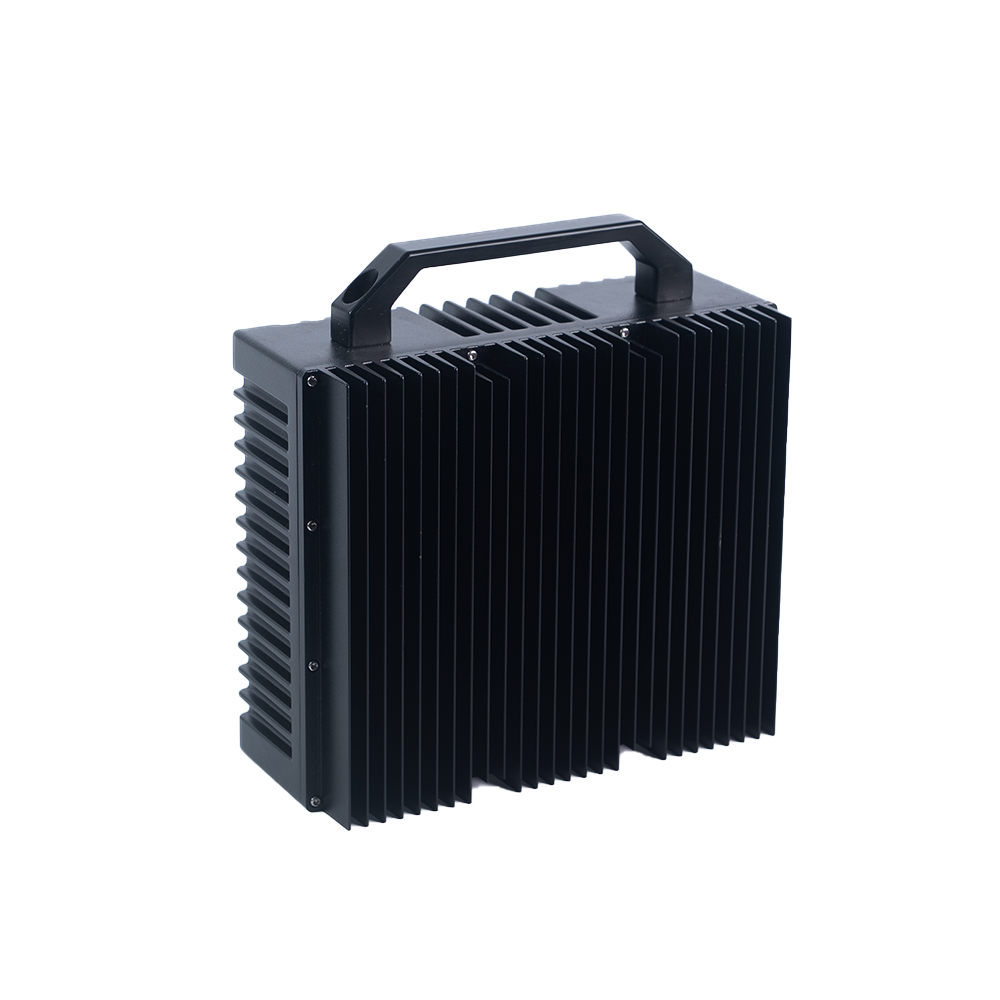

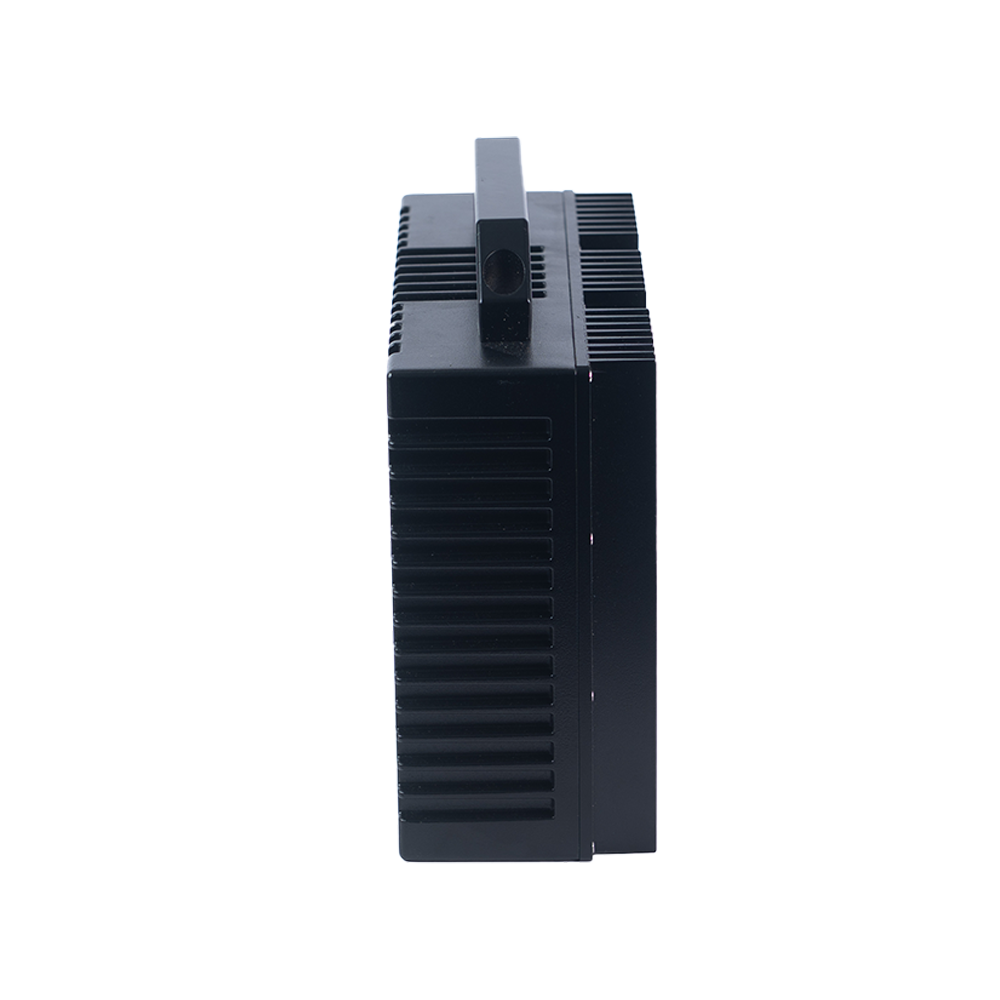

LT-RF3G350WNM
350W RF Attenuator with Wide Frequency Range and Low VSWR
The LT-RF3G350WNM is a high-power RF termination load designed to handle up to 350 watts of power with a broad frequency range from DC to 3 GHz. It is designed for use in demanding applications such as wireless communication systems, including 2G, 3G, 4G, and 10G LTE networks. This load ensures low VSWR and is ideal for in-building and network deployment solutions.
Login to view prices
Additional information
| Weight | 6 kg |
|---|---|
| Dimensions | 357 × 6 cm |
| Model Number | LT-RF3G350WNM |
| Frequency Range | DC – 3 GHz |
| Power Handling | 350W @ 25°C |
| VSWR | ≤1.30 |
| Impedance | 50 Ohms |
| Connector Type | N-Male |
| Color | Black |
| Operating Temperature | -55°C to +125°C |
| Applications | In-building Solutions, Wireless Communication (2G/3G/4G/LTE) |
