LT-SPOE4SFP1

LT-SPOE4SFP1

4-Port Gigabit PoE+ 1-Port Gigabit RJ45 1-Port

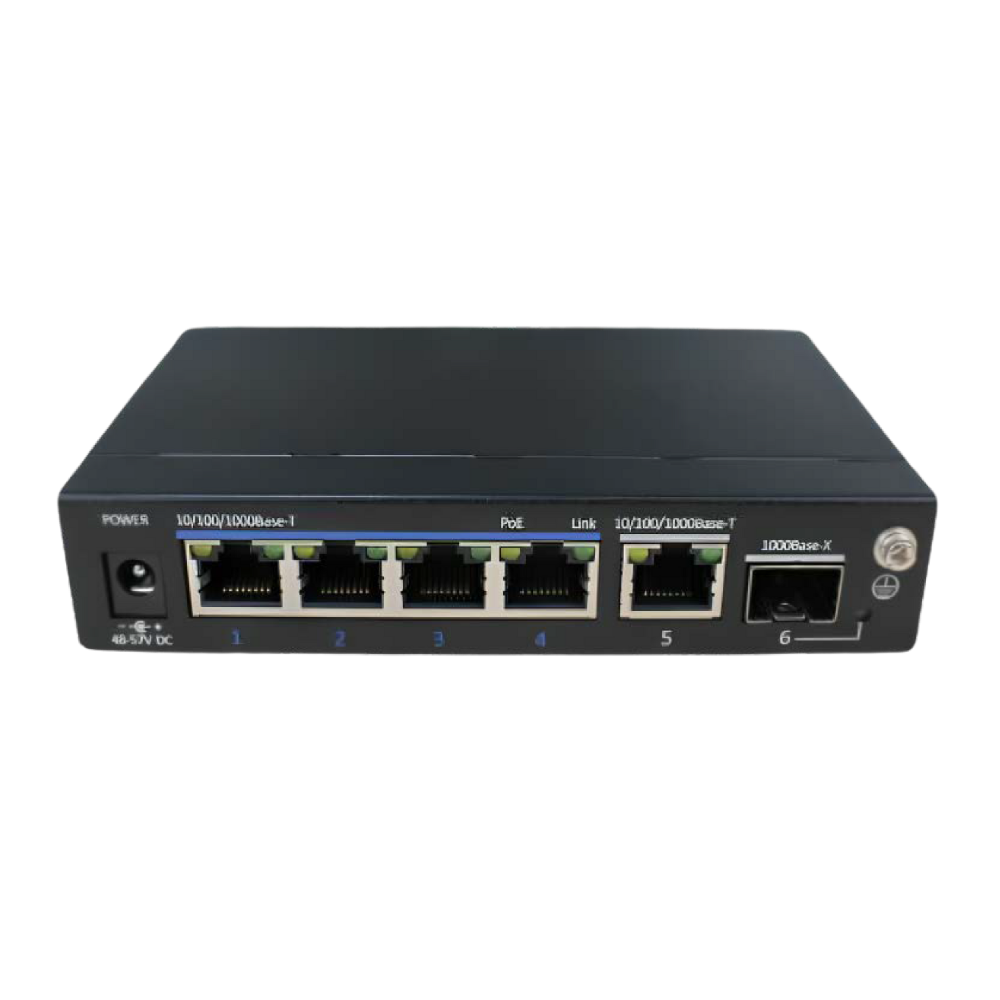

The LT-SPOE4SFP1 is an unmanaged Ethernet switch featuring 4 Gigabit PoE+ ports, 1 Gigabit RJ45 uplink port, and 1 Gigabit SFP uplink port. It offers 4*10/100/1000Base-T PoE+ RJ-45 downlink ports, each delivering up to 30W of power per port, suitable for powering IP cameras and other PoE-enabled devices. The switch includes a one-key smart CCTV mode with a PoE watchdog feature, automatically detecting and restarting cameras if they stop functioning. This switch is ideal for video surveillance, security monitoring systems, and other network applications.

Login to view prices

Additional information

Hardware Specifications

Downlink Ports
4*10/100/1000Base-T PoE+ RJ-45(Auto-MDI/MDI-X)

Uplink Ports
1*10/100/1000Base-T RJ-45(Auto-MDI/MDI-X)

LED Indicators
1*Power Indicator, 1*CCTV Mode Indicator, 4*Downlink Port Link Indicators, 4*Downlink Port PoE Indicators, 2*Uplink Port Link Indicators

DIP Switch
CCTV mode: the transmission distance is extended up to 250m, but the rate is limited to 10Mbps. This mode supports VLAN (all downlink ports are isolated from each other, but can communicate with uplink ports), network storm control and PoE watchdog.

Input Voltage
48~57V DC

Power Consumption
≤65W(Full load including PoE)

Dimensions
135mm*86mm*27mm (W*D*H)

Net Weight
0.3kg

Installation
Desktop/Wall mounted
Switch Property

Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at

Forwarding Modes
Store and Forward

MAC Table
8k, support auto learning

Switching Capacity
2Gbps/non-blocking

Packet Forwarding Rate
8.9Mpps

Packet Buffer
4Mb

Jumbo Frame
9K
Power Supply

PoE Standard
IEEE 802.3af/at (PSE)

PoE Power Supply Type
End-span

PoE Pin Assignment
1/2(+), 3/6(-)

PoE Budget
30W max for each port, 60W max for whole switch
Reliability

EMC
FCC 47 CFR Part 15 Class A
EN55032 Class A
IEC61000-4-2, Level 3: Contact Discharge: ±6kV, Air Discharge: ±8kV
IEC61000-4-3, Level 2: 3V/m
IEC61000-4-4, Level 2: 1kV
IEC61000-4-5, line to earth: 6kV
IEC61000-4-6, Level 2 (0.15MHz~80MHz)

LVD
EN 62368-1:2014

Operating
-5°C~45°C, 5%~95% (Non-condensation)

Storage
-40°C~75°C, 5%~95% (Non-condensation)
Certifications

CE, FCC

Datasheet

Download
