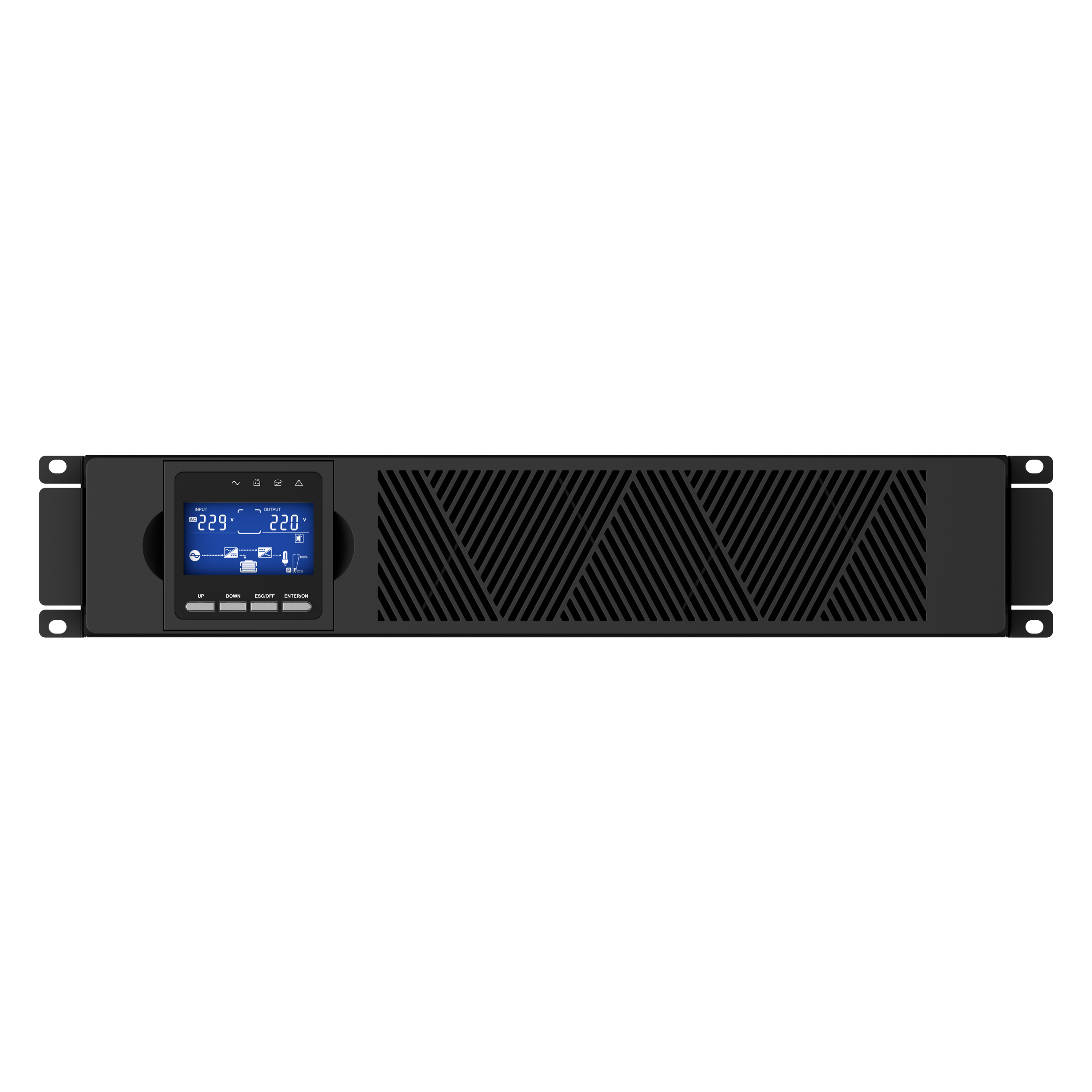

LT-UPS10KVA-TRB1

LT-UPS10KVA-TRB1

1-Phase Online UPS 10KVA/10Kw

The LT-UPS10KVA-TRB1 is a versatile 10KVA/10KW Double Conversion Online UPS, engineered for Rack and Tower configurations to adapt seamlessly to diverse installation environments. With a Power Factor of 1.0, it ensures efficient and clean power delivery, safeguarding critical equipment from outages, voltage fluctuations, and electrical noise. Its high energy efficiency reduces operational costs, while intelligent battery management optimizes battery performance and extends its lifespan. Featuring an intuitive LCD interface and remote monitoring capabilities, the LT-UPS10KVA-TRB1 is ideal for mission-critical systems across data centers, telecom infrastructure, medical facilities, and industrial applications, ensuring uninterrupted power supply with reliability and precision.

Additional information

General Specifications

Capacity
10 kVA / 10 kW

Topology
Double Conversion Online

Cooling
Fan cooled

Dimensions (W × D × H)
Long-run Unit: 191 × 460 × 337 mm

Standard Unit
191 × 460 × 720 mm (with wheels)

Net Weight
Long-run Unit: 14 kg

Standard Unit
63 kg

Installation Type
Tower / Rack-mount
Input Specifications

Nominal Voltage

208 / 220 / 230 (Default) / 240 Vac

Input Voltage Range
110–300 Vac
110–176 Vac @ 50% load
176–300 Vac @ 100% load

Frequency Range
40–70 Hz

Harmonic Distortion (THDi)
< 3%

Power Factor
0.99

Input Connection
Terminal (L + N + G)
Output Specifications

Output Power
10 kW

Power Factor
1.0

Output Waveform
Pure Sinewave

Online Efficiency (up to)
95.5% (0.955)

Economy Mode Efficiency
99% (0.99)

Output Voltage

208 / 220 / 230 (Default) / 240 Vac
Voltage Regulation (Static): ±1%
Voltage Regulation (Dynamic):±5%

Harmonic Distortion (THDv)
< 1% (Full linear load)
< 3% (Full nonlinear load)

Output Frequency
50/60 Hz ±10% (Line mode)
50/60 Hz (default) ±0.1% (Battery mode)
Overload Capability

Online Mode
105–110%: Transfers to bypass after 60 minutes (utility normal)
110–125%: Transfers to bypass after 10 minutes
125–150%: Transfers to bypass after 1 minute
>150%: Transfers to bypass after 0.5 seconds

Battery Mode
105–110%: Shuts down after 10 minutes
110–125%: Shuts down after 1 minute
125–150%: Shuts down after 10 seconds
>150%: Shuts down after 0.5 seconds

Bypass Mode
105–130%: Overload alarm only
130–150%: Shuts down after 10 minutes
150–200%: Shuts down after 1 minute
>200%: Shuts down after 0.5 seconds
Additional Output Details

Breaker Rating
63A

Phasing
3:1

Output Connection
Terminal (L + N + G)

Datasheet

Download
