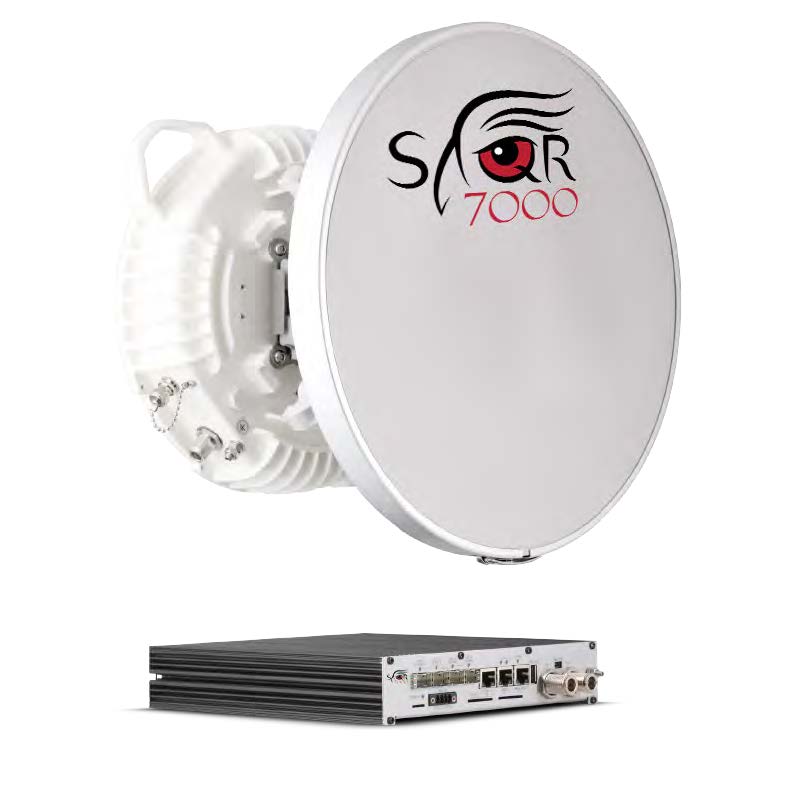

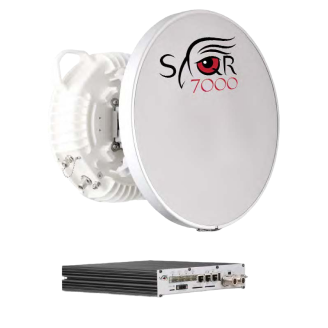

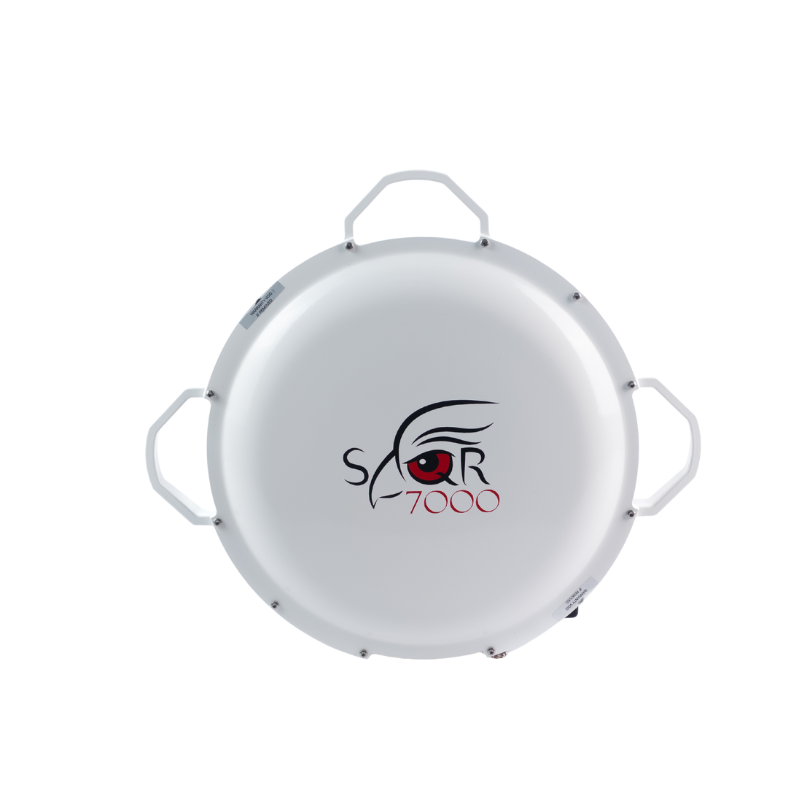

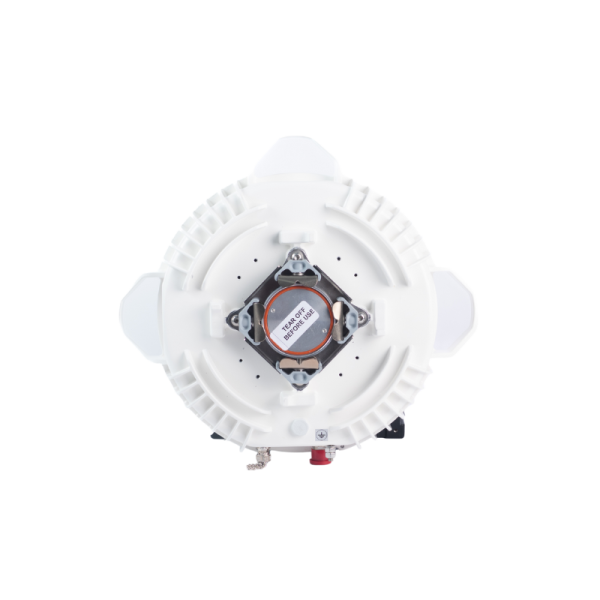

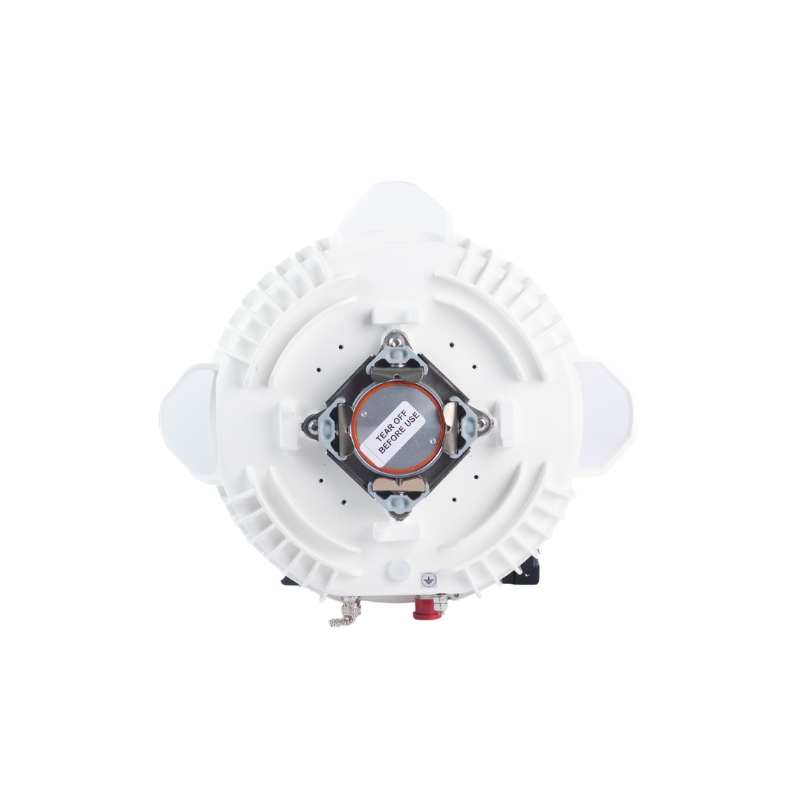

SAQR7000 Microwave
Mission-Critical | High Capacity Backhaul
• Flexible modular wireless system transporting IP with native ASI and TDM data over 2 GHz – 38 GHz radios.
• High spectral efficiency delivering more than 900 Mbps per 2+0 system.
• Flexible configurations including all-indoor or split-mount architecture from 1+0 to 2+0 XPIC up to 8+0 delivering 4+ Gbps over a single path.
• Fully redundant system configurations for protecting every component.
• Very High-Power radios for long distance back-haul.
• Ideal microwave system for critical network infrastructure with secure HTTPS/SSH access, FIPS 197
Login to view prices
Additional information
| Frequency Bands | U4GHz, L6GHz, U6GHz 7GHz, 8GHz, 11GHz, 13GHz, 18GHz, 23GHz, |
|---|---|
| Channel Bandwidths | ETSI FCC |
| Capacity | Up to 900 Mbps in 2+0 |
| Configurations | 1+0, 1+1 HSB/SD/FD, 1+0 Dual (Repeater), 2+0 (Layer 1 aggregation), 2+0 XPIC, 2+2** (with two IDUs) |
| Synchronization | PTP 1588v2, SyncE |
| Traffic/Management | 3x 10/1000Base-T, RJ-45 – for traffic and/or management access, 4x SFP (1000BseSX/LX)- for traffic, also work as Extension/Protection ports, |
| Management | MIB, SNMP v1/v2c /v3, Web GUI (HTTP/HTTPS), CLI (Telnet/SSH), Serial interface (USB IP port) , in-band or out-band management |
| Ethernet Switch | Managed Gigabit Ethernet Layer 2 |
| QoS | 64 Level DiffServ (DSCP) or 8 level 802.1p mapped in 4 prioritization queues with VLAN support IPv6 Traffic Class |
| VLAN support | 802.1q, up to 4096 VLANs |
| IDU Operational Use | ETSI EN 300 019, Part 1-3, Class 3.2 |
