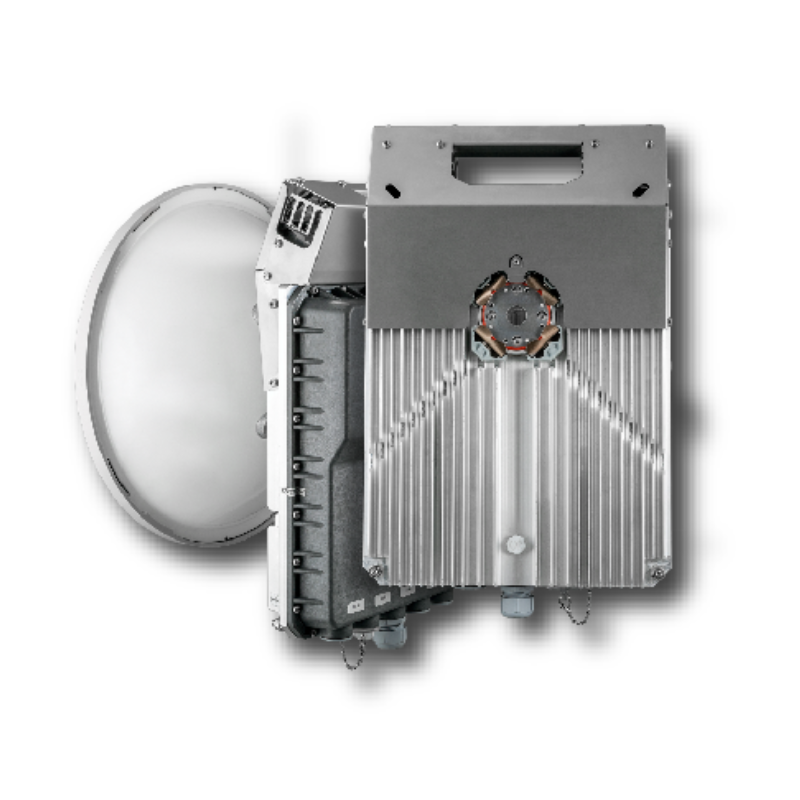

SAQR7100
Dual Transceiver XPIC-Capable Full Outdoor Microwave Radio
The SAQR7100 is a high-performance, dual-transceiver full-outdoor microwave radio built for modern backhaul networks. Designed for ultra-reliable, high-capacity links, it delivers up to 2.2 Gbps per direction and integrates dual XPIC chains into a single compact unit, simplifying deployment while maintaining robust performance. Operating across licensed bands from 4U to 38 GHz, the SAQR7100 supports channel bandwidths up to 112 MHz, adaptive modulation up to 4096QAM, and AES-256 encryption compliant with FIPS 197. Its embedded Carrier Ethernet switch, 10 Gbps interfaces, and advanced synchronization and QoS features make it ideal for demanding use cases. Engineered for reliability and flexibility, the SAQR7100 excels in harsh environments and complex topologies, making it a trusted choice for critical wireless infrastructure.
Login to view prices
Additional information
| Concept / Form Factor | FODU with direct-mount antenna |
|---|---|
| Frequency Band | 4U, 5, 6, 7, 8, 11, 13, 15, 18, 23, 26, 28, 30, and 38 GHz |
| Duplex Spacing | Any applicable |
| Frequency Stability | ±10 ppm |
| Capacity | Up to 2.2 Gbps (1.68 Gbps in AES mode) |
| Max Modulation | 4096QAM |
| Configuration | 1+0, 2+0 XPIC, 2+0 ACAP/ACCP, 1+1 SD (FD, HSB) |
| ATPC | Yes |
| ACM | Adaptive Code Modulaon (ACM), Hitless |
| Channel Bandwidth | 5, 7, 10, 14, 20, 28, 30, 40, 50, 56, 60, 75, 80, 100, 112 MHz |
| FEC | LDPC FEC (varies by modulaon scheme) |
| Electrical Specifications | Power Consumption Voltage Range Surge Protection |
| Mechanical Specifications | Stationary Use Temperature Range Size Weight Mount Antenna |
